LIQUID DISTRIBUTOR / REDISTRIBUTOR

PIPE TYPE

Pressure fed center pipe with multiple branch pipes with bottom orifices.

Provides large open area for vapor passage from below.

Pipe type distributor that allows more branch pipes with bottom orifices.

Typically used when the liquid feed is pressurized and for dispersed phase distribution in extraction columns.

Pipe type distributor with annular pipes with bottom orifices.

Typically used when the feed is pressurized.

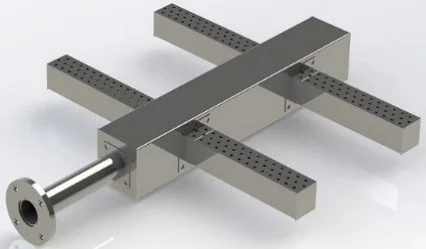

Gravity fed center pipe with multiple branch pipes with bottom orifices.

Dispersed phase distributor for extraction operations.
