PACKING SUPPORT
PACKING SUPPORT FOR RANDOM PACKING (VAPOR INJECTION PLATE)
Random Packing Support PST-R01
PST-R01
Hump-shaped vapor injection plate with small slot openings. It has large open area and does not significantly increase bed pressure drop.

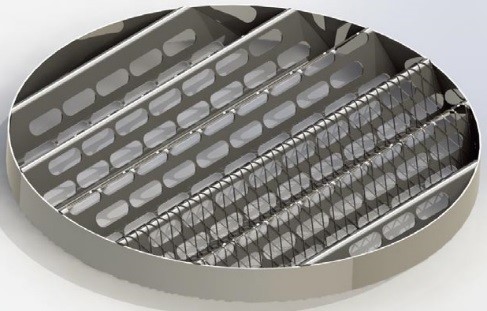

PST-R02
Hump-shaped slotted vapor injection plate with mesh cover for packing bypass prevention. It has large open area, and does not significantly increase bed pressure drop.
Random Packing Support PST-R02
Random Packing Support PST-R03
PST-R03
Grid type support with mesh cover for packing bypass prevention.

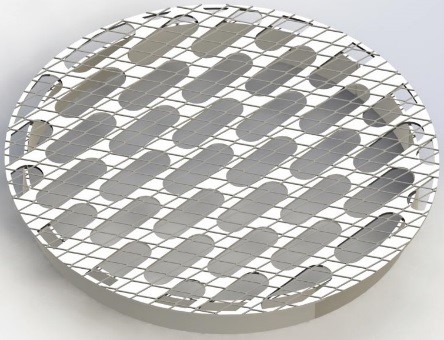

PST-R04
Slotted plate support with mesh cover for packing bypass prevention. Typically applied in smaller columns.
Structured Packing Support PST-S01
PACKING SUPPORT FOR STRUCTURED PACKING
Structured Packing Support PST-S01
PST-S01
Grid type packing support set on shell welded supports. It has large open area (Typically 97%).
pst-s02
Grid type support placed on support ring for smaller columns.
Structured Packing Support PST-S02
