SPR combines advantageous features of both structured and random packing into an innovative and powerful mass transfer technology.

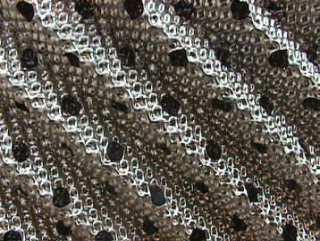

SEPAK ® Series Structured Packing (SP)
Applicable to a wide range of operations.
SEPAK ® - GM Series Structured Packing (SP-GM)
With lanced slits in surface, liquid can mix back and forth between two sides of the sheet metal. Especially powerful for low liquid rate operations

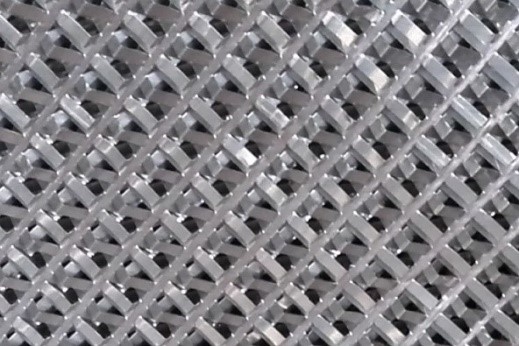

SEPAK ® - G Series Gauze Structured Packing (SP-G)
Provides low pressure drop per theoretical stage.
Industry standard Intalox Metal Tower Packing (IMTP) equivalent high performance random packing.

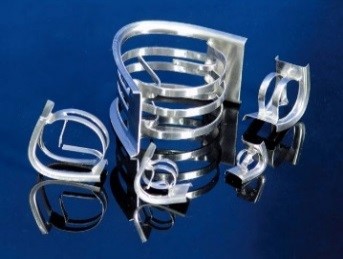

The Ring-I packing offers a very open structure allowing low liquid hold-up and capacity improvements when compared to conventional random packing.
Height to Diameter Ratio: 1/3 Low aspect ratio results in lower center of gravity for settling in optimal arrangement during installation. Industry standard Cascade Mini-Ring equivalent random packing.
Industry standard Pall Ring equivalent random packing
Industry standard Raschig Ring equivalent random packing.
SEPGRID ® SG-1 grid packing is suitable for operations with fouling, erosion, coking, and high solids content.

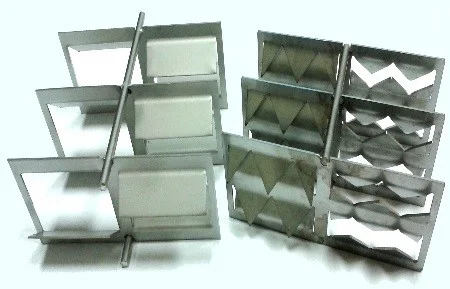

SG-2 / SG-3 Grid
Sawtooth-shaped / BladeShaped cutting design of SEPGRID ® SG 2 / SG 3 provides extremely open structure. Thus it offers minimum pressure drop and maximum capacity.
